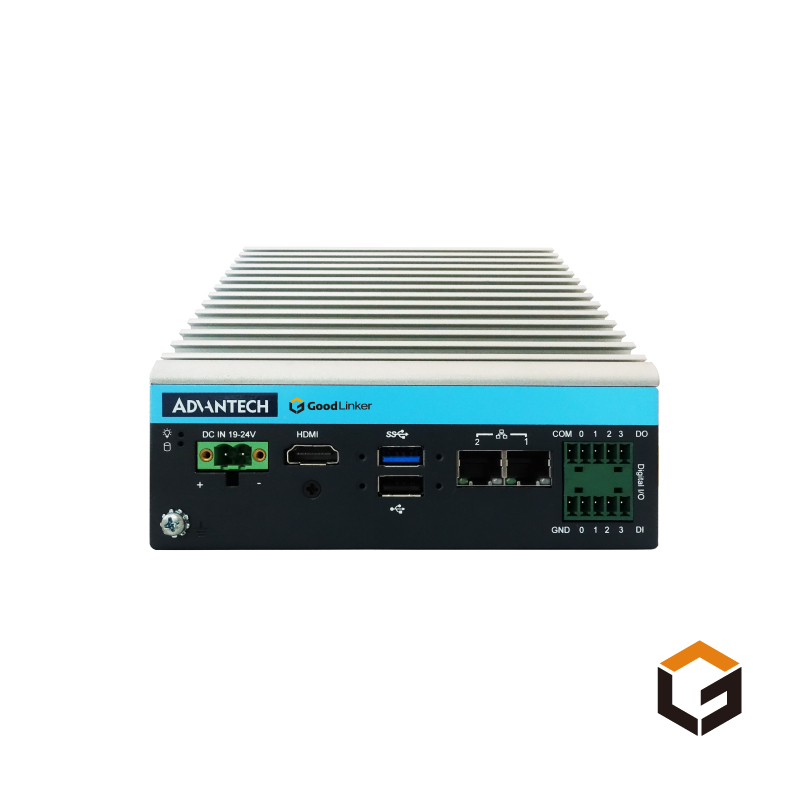

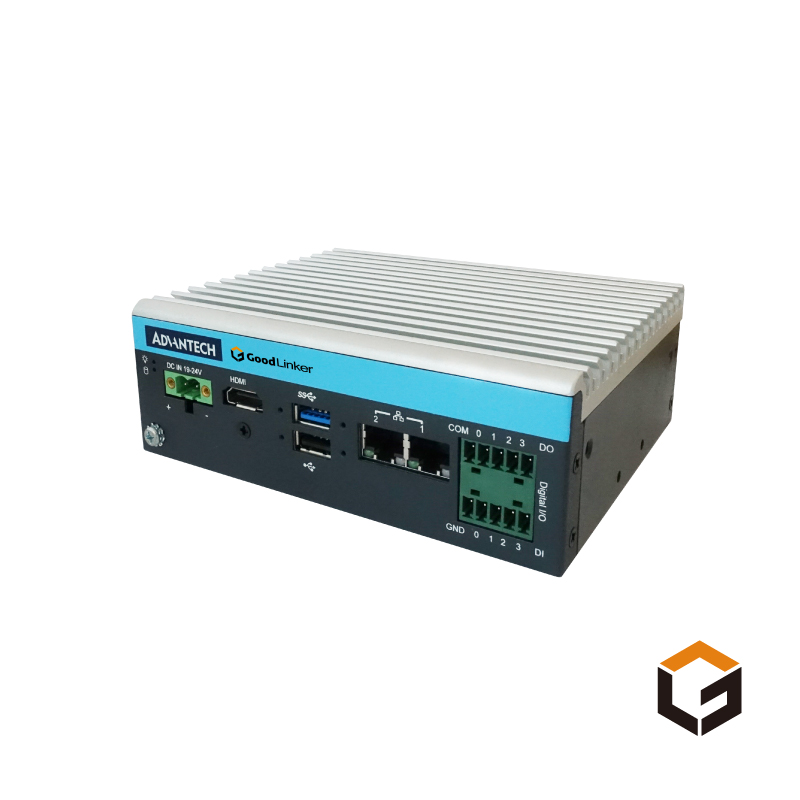

SDE-710 Screen Data Extractor
- Non-intrusive data extraction — no machine modification required
- Quick to install on new or legacy equipment, including dedicated PLC machines
- Replaces manual record-keeping, saving time and labor while improving yield
- Continuous long-term data capture for analytics and monitoring
- Flexible data output with cloud backup, making abnormal conditions easy to trace
Overview
Highlights: non-intrusive, accurate capture of HMI data
Critical data collection: resolves data silos across existing production equipment without a full retrofit or equipment replacement.
Painless upgrade: captures the machine's display through the controller's video output and recognizes data directly from the image. No change to your production flow, no additional cameras, and because the method is non-intrusive it does not affect the equipment warranty.
Automatic data collection: recognizes letters and digits automatically, with continuous output as reports or values.
Flexible output: collected data can be delivered over Modbus, REST API and other interfaces.
Recognition accuracy verification: recognized images can be re-verified against a remote AI model — an automated check that validates system reliability.
Connection Architecture
Applications
Specifications
| Software Specifications | |
|---|---|
| Screen video source | HDMI or VGA |
| Screen resolution | 1920 × 1080, 1280 × 1024, 640 × 480 (including but not limited to these resolutions) |
| Sampling rate | 20 Hz (20 readings per second, normal mode) |
| Value types | Integer, floating point, string Numeric accuracy above 98% (excluding easily confused character pairs such as 0/O and 1/l) |
| Recognition specifications | Tested and recognizable text: Color combinations do not affect recognition: black on white, red on white, brown on white, highlighted/inverted text, black on light blue, white on black (including but not limited to these combinations) Fonts do not affect recognition: Calibri, Arial, Microsoft JhengHei, PMingLiU, DFKai-SB (including but not limited to these fonts) Recommended minimum text size by resolution: 1920 × 1080 screen — 8 pt or larger 1280 × 1024 screen — 12 pt or larger 640 × 480 screen — 14 pt or larger Recognition throughput: 20 regions of interest (ROIs, i.e. recognized strings) per second Measured performance: approximately 300 ms total processing time for 10 strings, 500 to 600 ms for 20 strings |
| Hardware Specifications | |
|---|---|
| Ethernet Interface | 2 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| USB Interface | 1 × USB 2.0, 1 × USB 3.0 |
| Digital I/O | 4 × DI, 4 × DO |
| Dimensions (W × D × H) | 147 × 118 × 52 mm |
| Weight | 1.2 kg |
| Operating Temperature | -10 to +60 °C (14 to 140 °F) |
