BCS-M100
・ARMv8 Cortex-A53 64-bit SoC @ 1.2GHz
・100Mbps Ethernet port
・Modbus RTU/TCP industrial protocol supported
・ADC/Analog/USB/RS-485 COMM via iO-Grid collector rail
・The AI/DI input modules feature flexible extensibility
・5 VDC isolated power input
・0 to 50°C system operating temperature range
・Build-in with LASSIE IIoT Platform
・Display on GoodLinker official website and mobile APP
Introduction

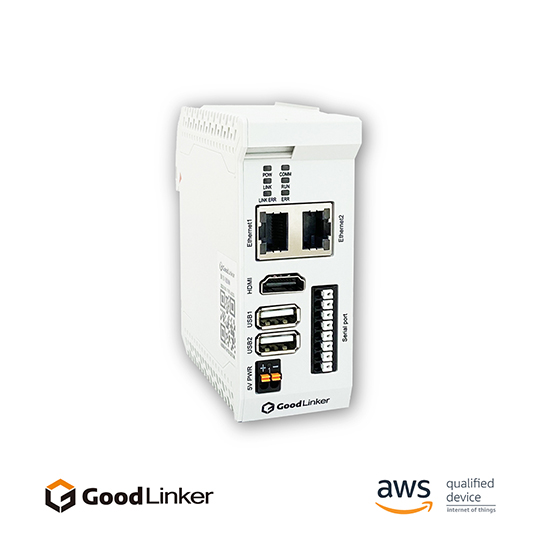

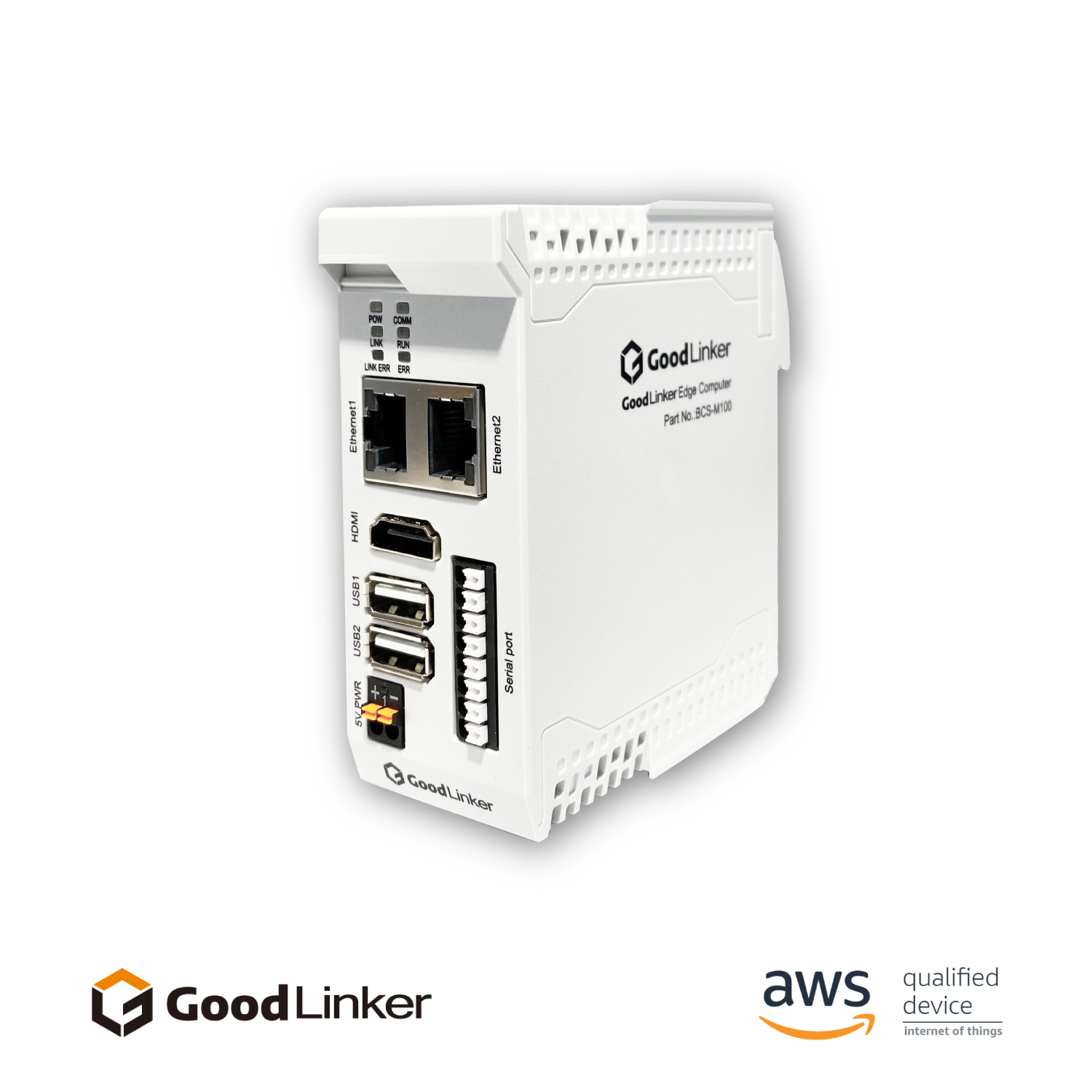

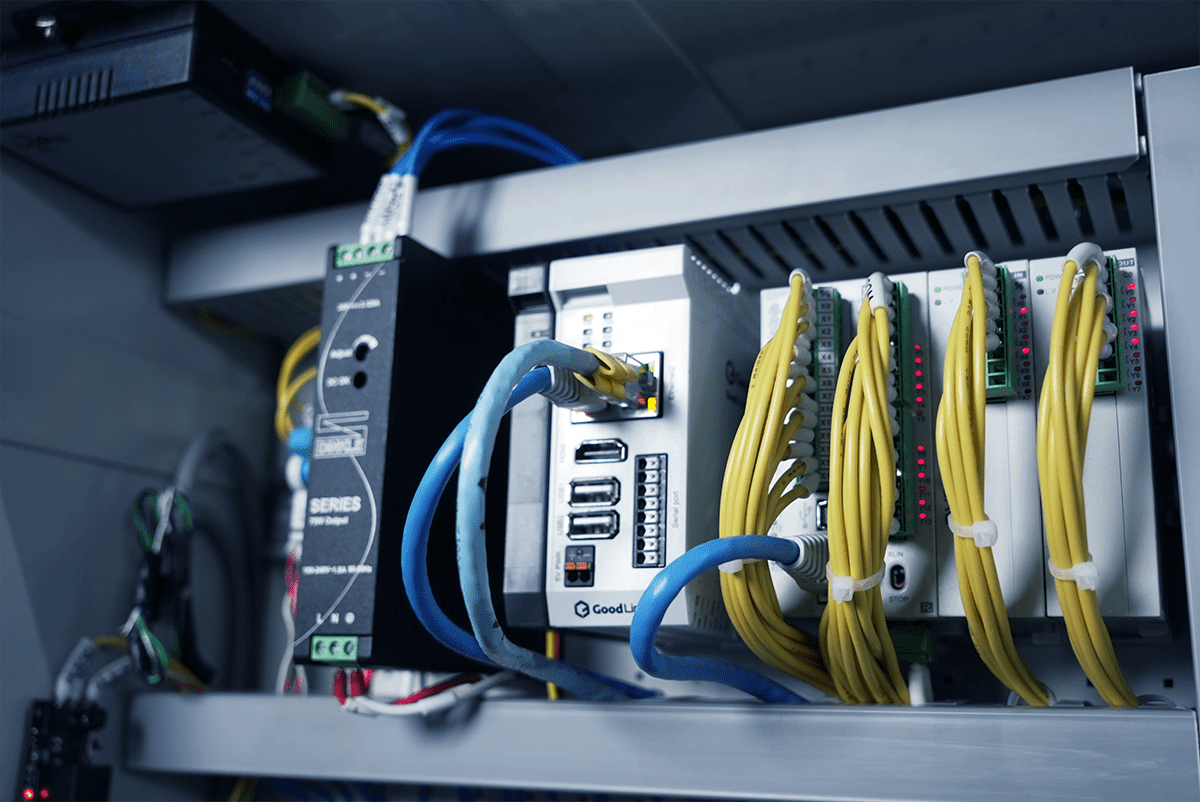

The BCS-M100 rail mountable, fanless, ARM embedded computer uses Broadcom 2711 Quad-core processor, feature the most reliable I/O design to maximize connectivity, meeting requirements of different scenarios.

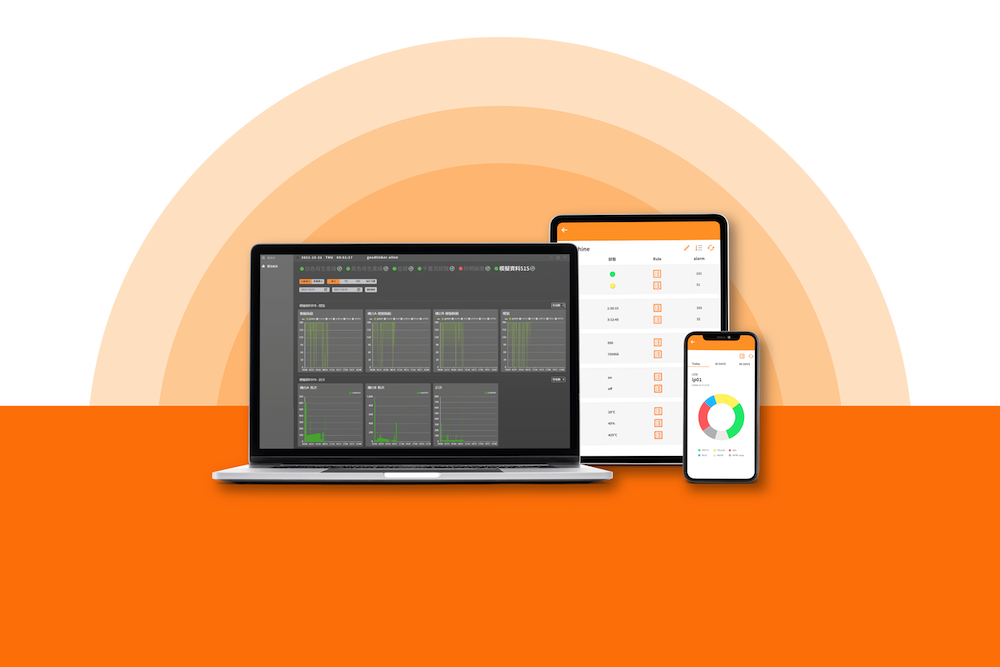

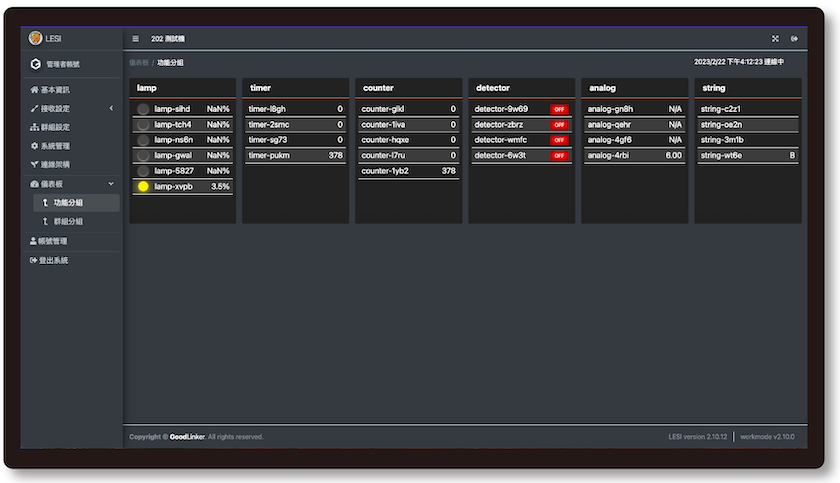

The BCS-M100 supports the GoodLinker LASSIE IIoT Platform for industrial equipment status monitoring, HMI monitoring, environment monitoring, and alerts. Close monitoring of the industrial equipment status makes the production line easier to recover from errors and provides the SCADA dashboard display on GoodLinker official website and mobile APP.

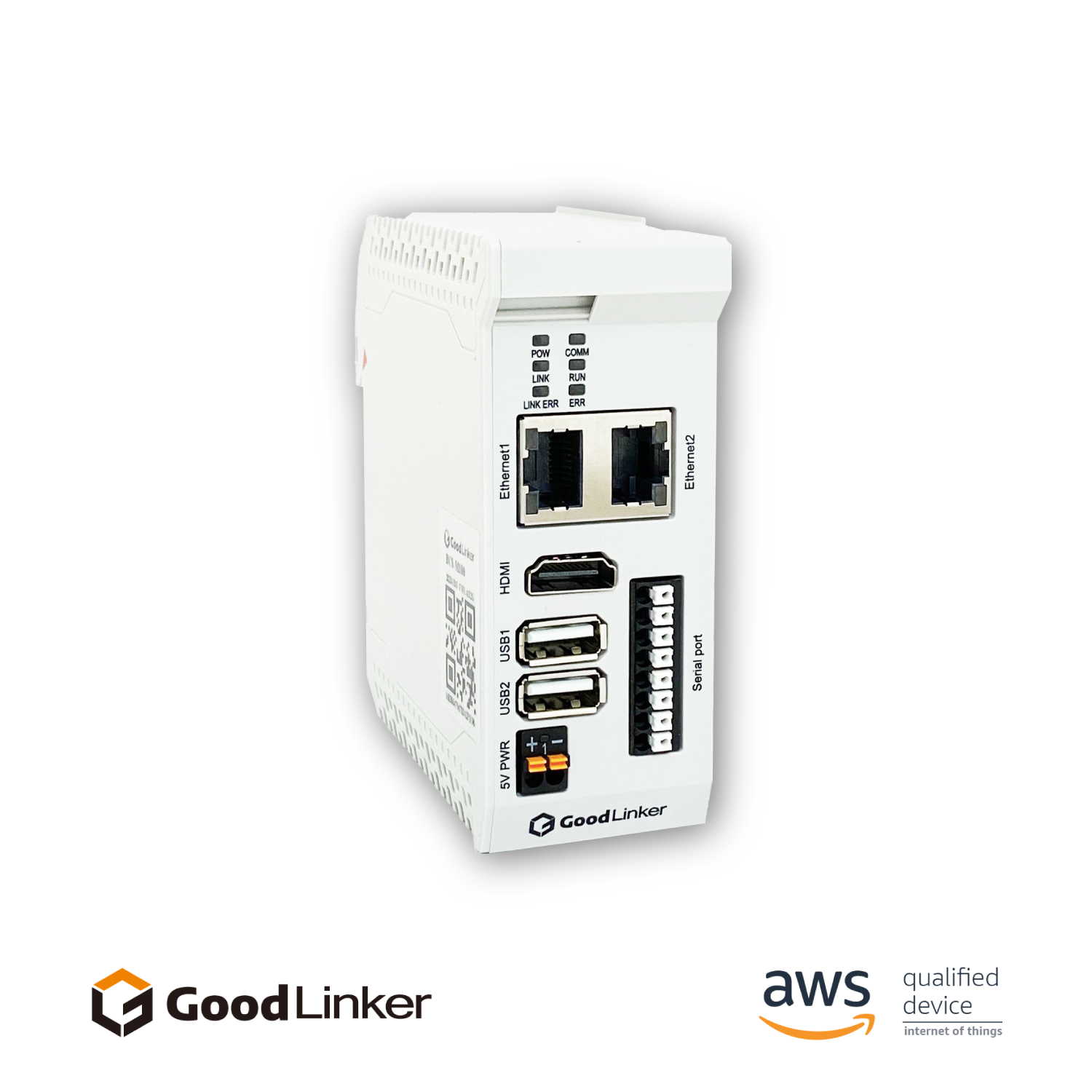

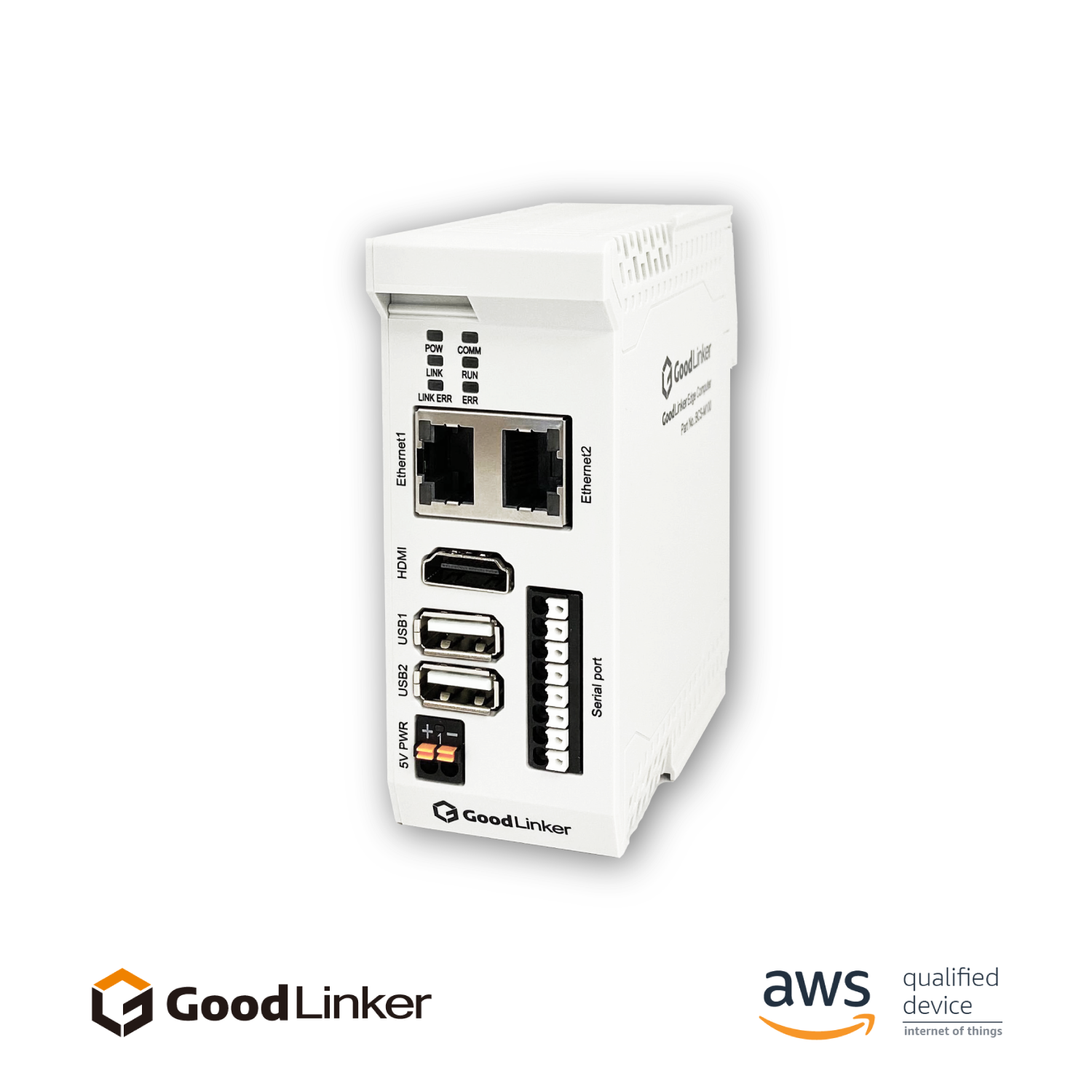

The BCS-M100 is an AWS qualified device for IoT. It can upgrade old types of machines to smart devices by data acquisition, data computing, and has been tested to work with AWS IoT Core services for Industrial IoT applications.

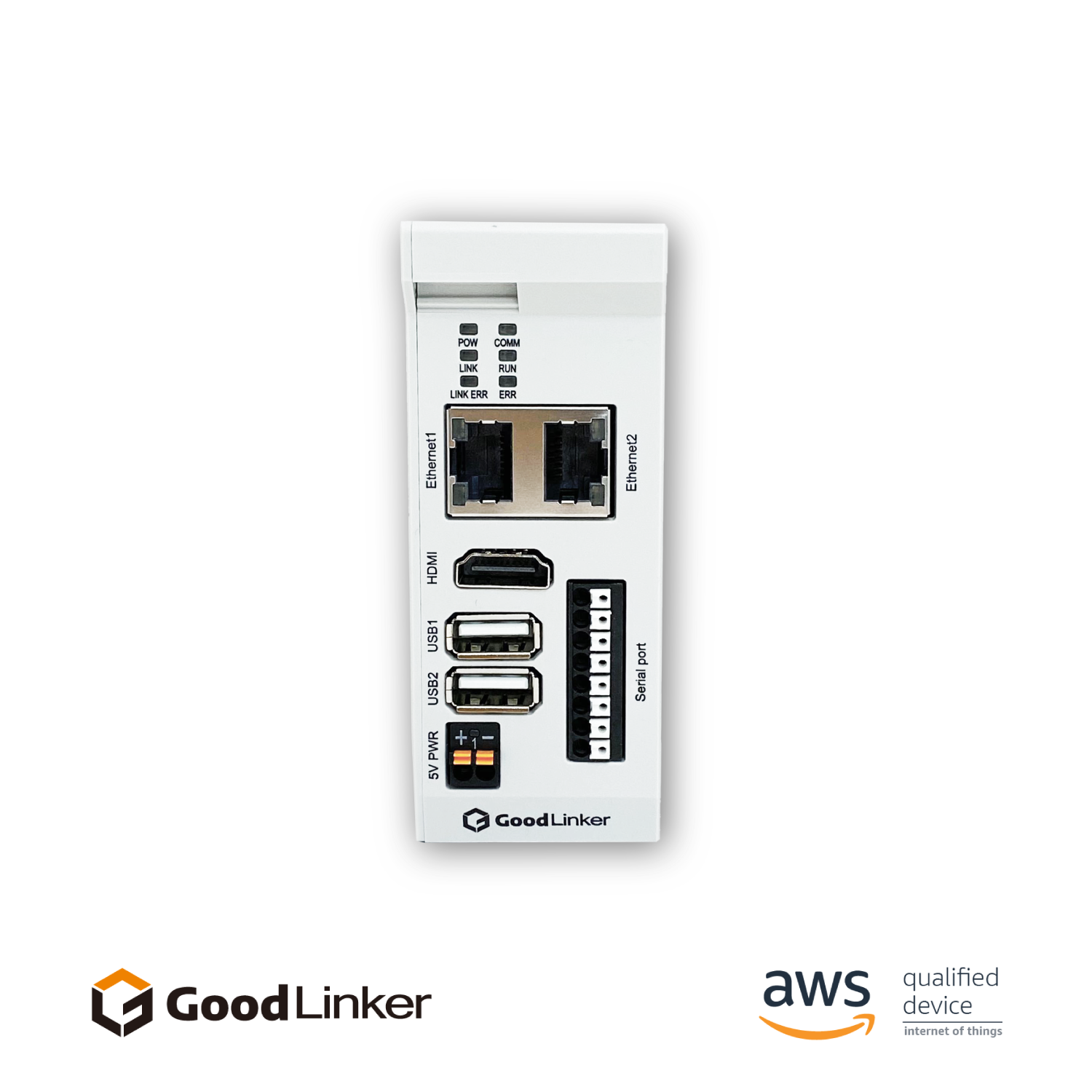

| CPU | Cortex-A53, 64-bit SoC @ 1.2GHz |
| GPU | VideoCore IV with OpenGL ES 1.1, 2.0 |
| RAM | ELPIDA B8132B4PB-8D-F 1GB LPDDR2 |
| Memory | 32GB eMMC Flash memory |
| OS | ArchLinux (Linux Kernel: 4.19.xx) |
| Display | 1 x HDMI |
| USB | 2 x USB 2.0 |
| Ethernet | 1 x 100Mbps Port (SMSC LAN9514-JZX) |
| Indicator | 6 x LED for System status |
| COMM | 1 x RS-485 via iO-Grid |
| Ethernet Ports | Auto-sensing 10/100 Mbps ports (RJ45) |
| Serial Ports | 1 x RS-485 |
| Data Bits | 7、8 |
| Parity | Even、Odd、None |
| Stop Bits | 1、2 |
| Baud rate | 1.2K、2.4K、4.8K、9.6K、14.4K、19.2K、38.4K、57.6K、115.2K |
| RS485-2w | Data+, Data-, GND |
| POW | Power |
| COMM | Module/Modbus connection |
| LINK | Server connection |
| RUN | System Run |
| LINK ERR | Data upload error |
| ERR | System operation Error |
| Housing | Polycarbonate |
| Dimensions | 40mm x 100mm x 90.5mm (W x D x H) |
| Weight | 130.6g |
| Installation | Rail mounting |
| Input Voltage | 5V |
| Input Current | 1A |
| Power Consumption | 5W |
| Operating Temp. | 0°C to 50°C (32°F to 122°F) |
| Storage Temp. | -20°C to 75°C(-4°F to 167°F) |
| Storage Temp. | 10% to 90%, non-condensing |
| Dimensions | 40mm x 100mm x 90.5mm (W x D x H) |
| Weight | 130.6g |
| Installation | Rail mounting |
