BCS-M100 Industrial PC

  • ARMv8 Cortex-A53 64-bit SoC @ 1.2GHz
  • 100Mbps Ethernet port
  • Modbus RTU/TCP industrial protocol supported
  • ADC/Analog/USB/RS-485 COMM via iO-Grid collector rail
  • The AI/DI input modules feature flexible extensibility
  • 5 VDC isolated power input
  • 0 to 50°C system operating temperature range
  • Build-in with LASSIE IIoT Platform
  • Display on GoodLinker official website and mobile APP
Contact Us

Introduction

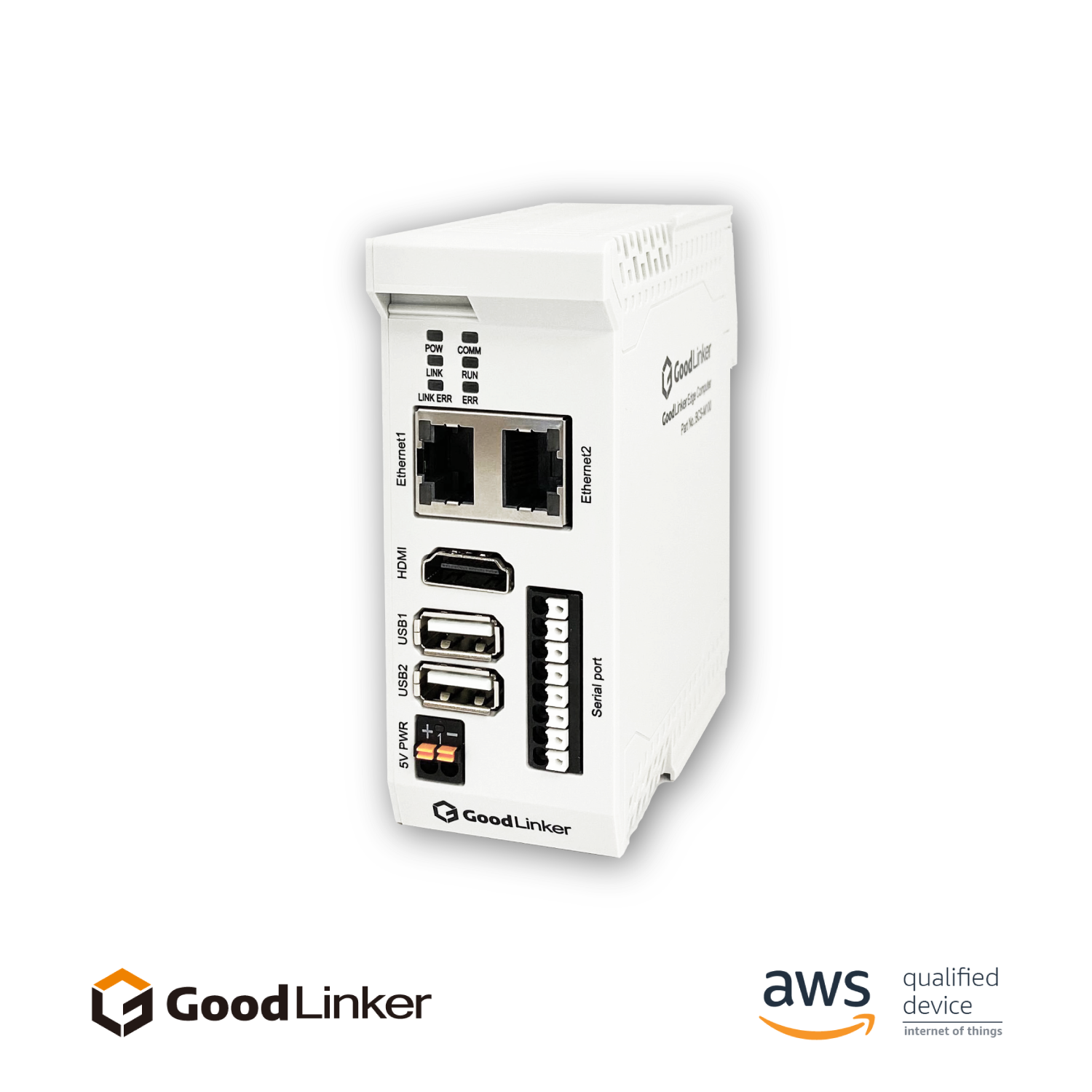

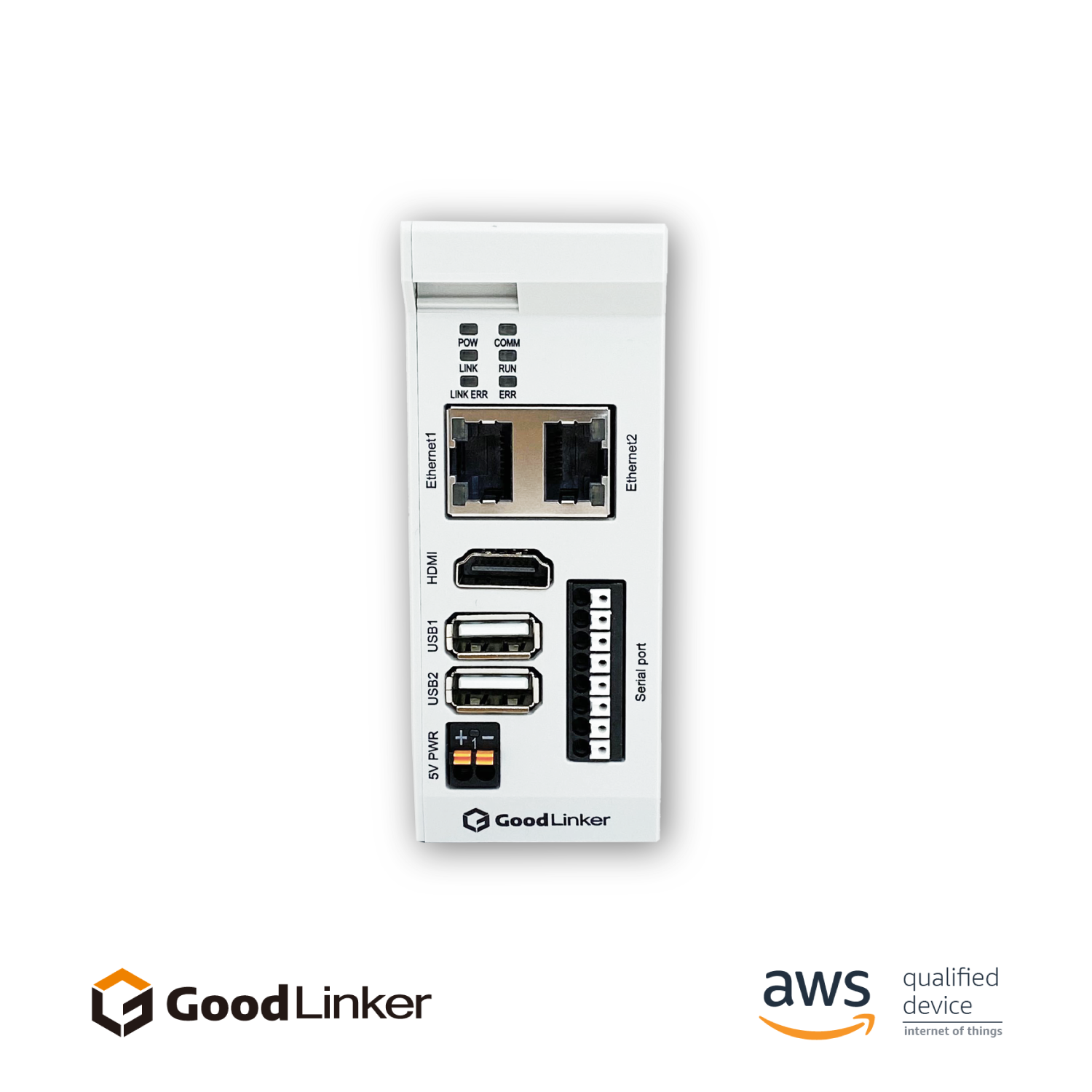

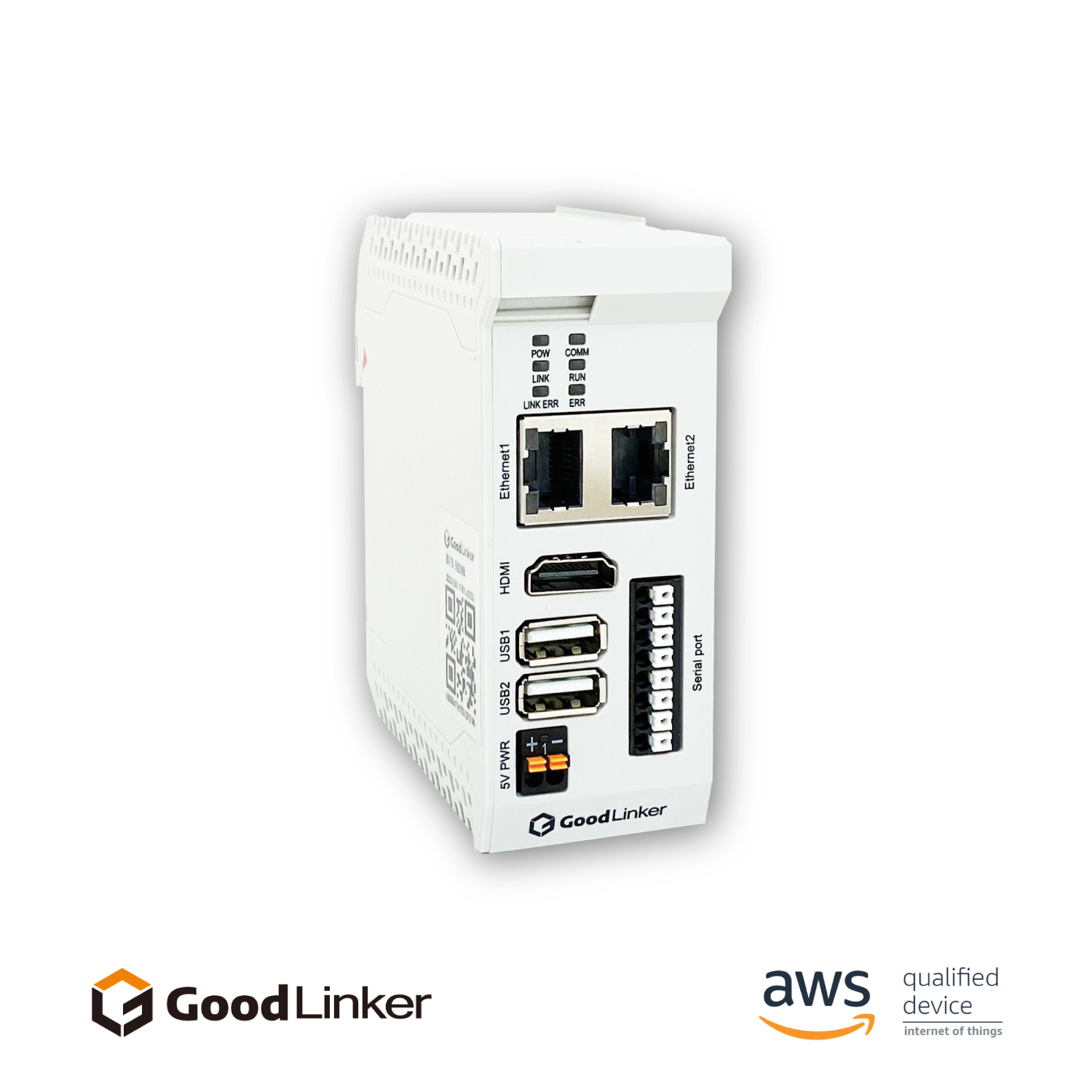

The BCS-M100 rail mountable, fanless, ARM embedded computer uses Broadcom 2711 Quad-core processor, feature the most reliable I/O design to maximize connectivity, meeting requirements of different scenarios.

The BCS-M100 supports the GoodLinker LASSIE IIoT Platform for industrial equipment status monitoring, HMI monitoring, environment monitoring, and alerts. Close monitoring of the industrial equipment status makes the production line easier to recover from errors and provides the SCADA dashboard display on GoodLinker official website and mobile APP.

The BCS-M100 is an AWS qualified device for IoT. It can upgrade old types of machines to smart devices by data acquisition, data computing, and has been tested to work with AWS IoT Core services for Industrial IoT applications.

Specifications

CPU Cortex-A53, 64-bit SoC @ 1.2GHz
GPU VideoCore IV with OpenGL ES 1.1, 2.0
RAM ELPIDA B8132B4PB-8D-F 1GB LPDDR2
Memory 32GB eMMC Flash memory
OS ArchLinux (Linux Kernel: 4.19.xx)

Display 1 x HDMI
USB 2 x USB 2.0
Ethernet 2 x 100Mbps Port (SMSC LAN9514-JZX)
Indicator 6 x LED for System status
COMM 1 x RS-485 via iO-Grid

Ethernet Ports Auto-sensing 10/100 Mbps ports (RJ45)

Serial Ports 1 x RS-485
Data Bits 7、8
Parity Even、Odd、None
Stop Bits 1、2
Baud rate 1.2K、2.4K、4.8K、9.6K、14.4K、19.2K、38.4K、57.6K、115.2K

RS485-2w Data+, Data-, GND

POW Power
COMM Module/Modbus connection
LINK Server connection
RUN System Run
LINK ERR Data upload error
ERR System operation Error

Housing Polycarbonate
Dimensions 40mm x 100mm x 90.5mm (W x D x H)
Weight 130.6g
Installation Rail mounting

Input Voltage 5V
Input Current 1A
Power Consumption 5W

Operating Temp. 0°C to 50°C (32°F to 122°F)
Storage Temp. -20°C to 75°C(-4°F to 167°F)
Storage Temp. 10% to 90%, non-condensing
Dimensions 40mm x 100mm x 90.5mm (W x D x H)
Weight 130.6g
Installtion Rail mounting
