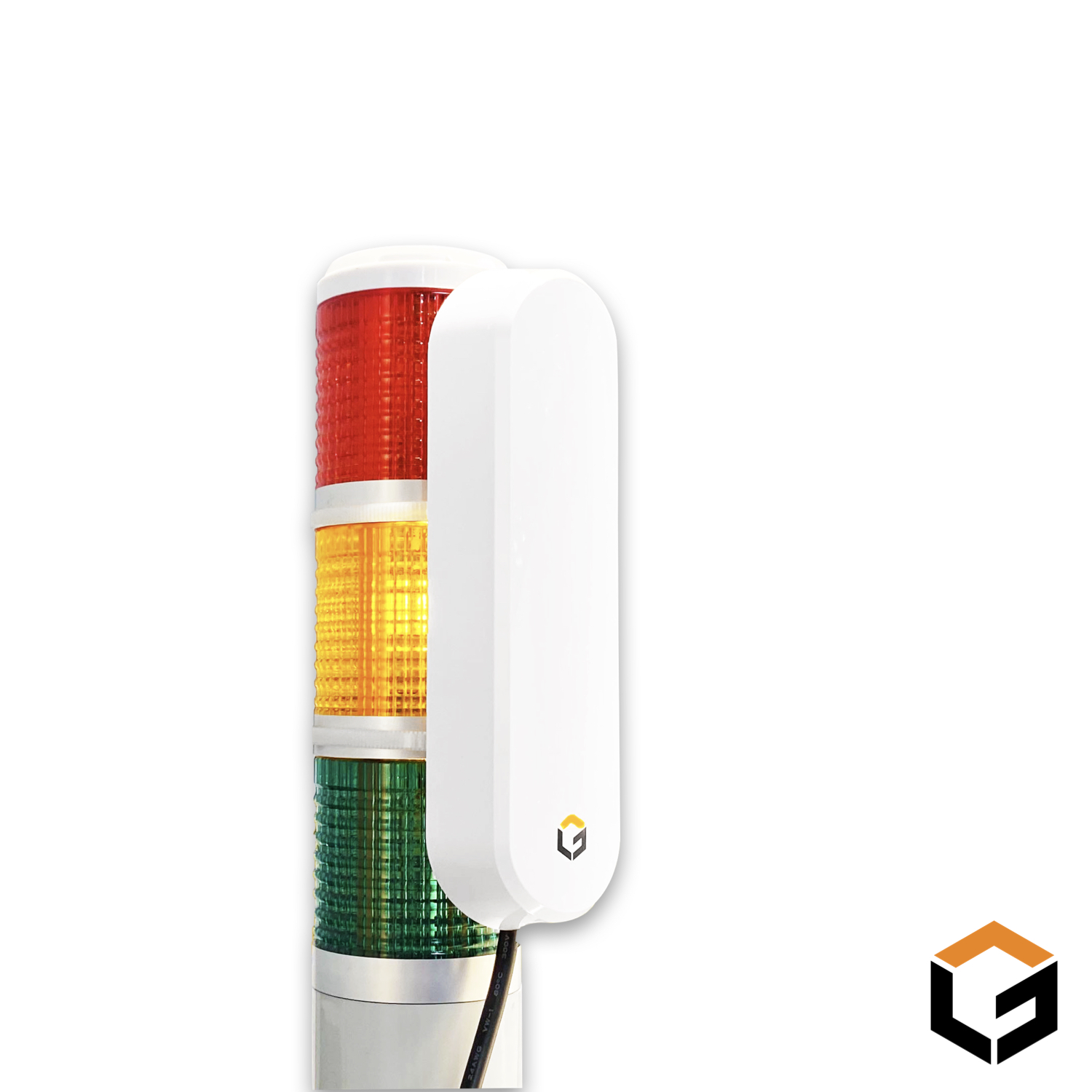

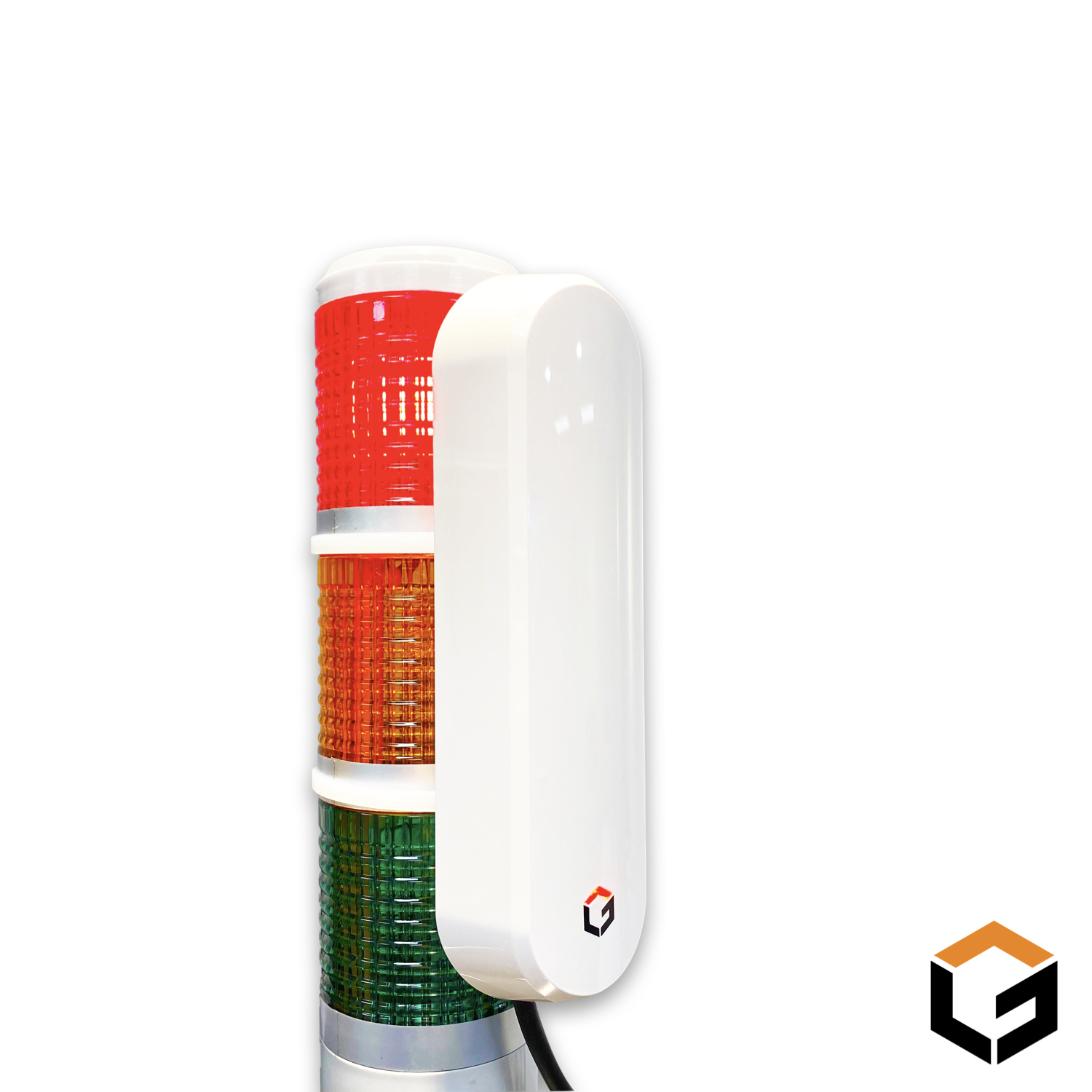

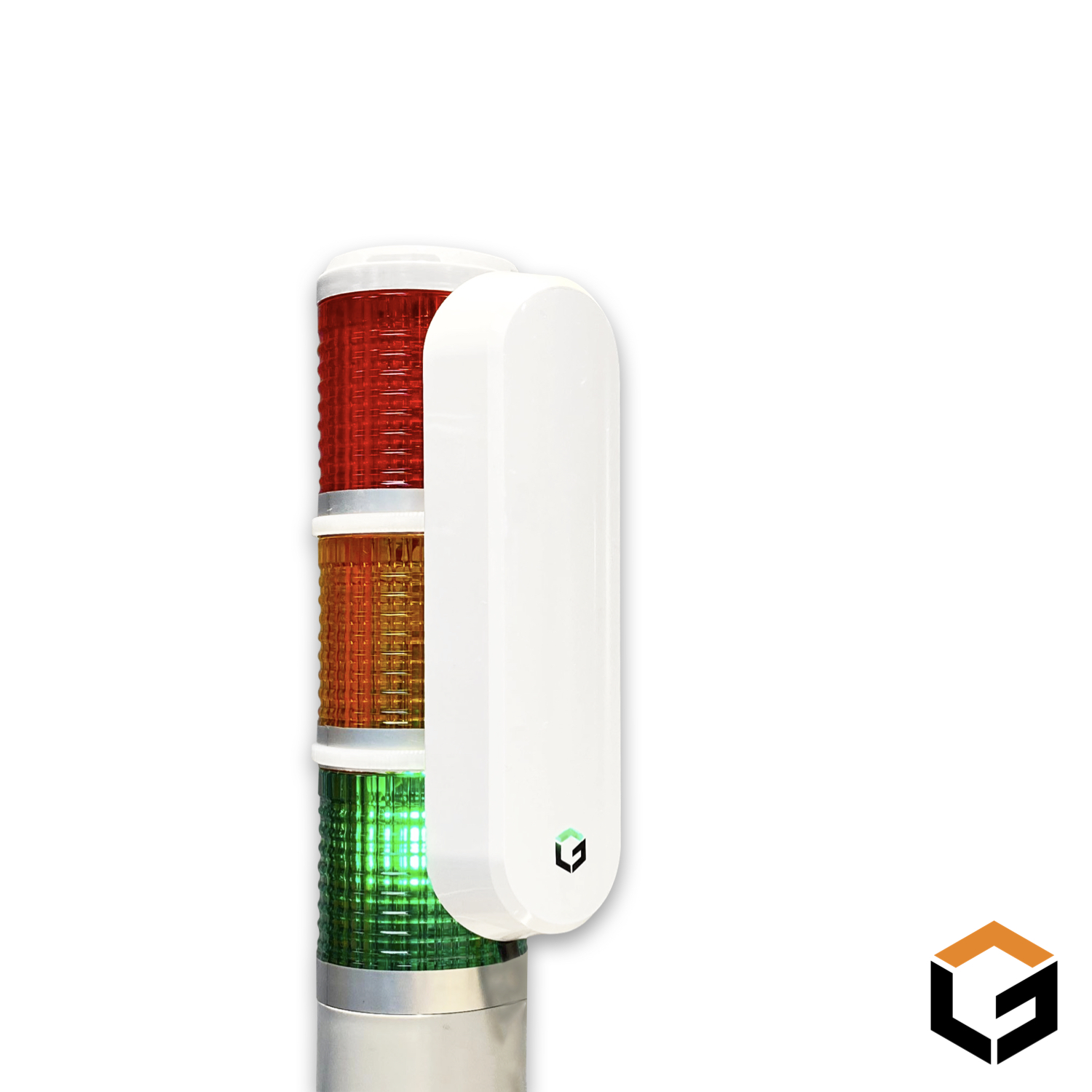

TLM-21 / TLM-14 / TLM-04C Tower Light Sensor

  • For measure equipment tower light status using
  • Short installation time
  • Suits different types of tower light model
  • LED color indicator

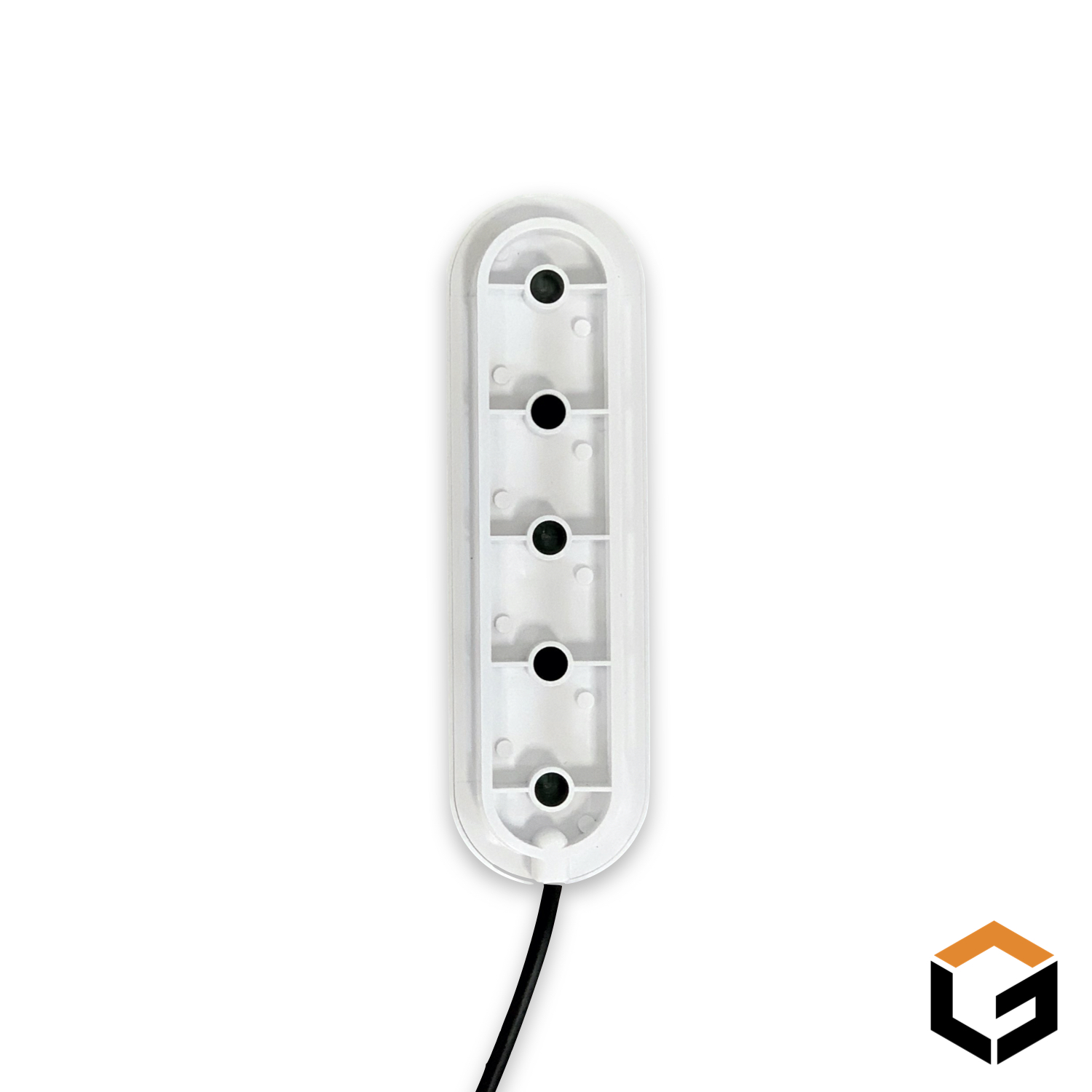

  • Patented light tunnel design
  • 24V DC rated voltage
  • NPN output
  • 0°C to 50°C operating temperature range
Contact Us

Introduction

The GoodLinker® Tower Light Sensor (TLM-21/TLM-14/TLM-04C) provides economical and precise solutions for monitoring machine status needless connect the equipment internal wire. The device package allows for easy implementation by the customer. Typical applications include calculating equipment activation rate, remote mirroring, record history status, and abnormal status alert.

Selection Guide

Please measure the height of tower light layer before installing.

SENSOR MODEL SUGGESTED INSTALLATION AND APPLICATION
TLM-21 Tower light models (layer height 45mm - 90mm)
TLM-14 Tower light models (layer height 25mm - 45mm)
TLM-04C Multi-color tower light models

Specifications

SENSOR MODEL TLM-21 / TLM-14 TLM-04C
Operating Ambient Temperature 0°C to 50°C 0°C to 50°C
Operating Humidity Range 90% RH or less, no condensation 90% RH or less, no condensation
Body Color White White
Rated Voltage 24V DC 24V DC
Working Current 18mA 19mA
Sensing Method Three single-color sensor (R, Y, G) One multi-color sensor
Response Time 30 ms 500 ms
Operation LUX Range > 250 LUX > 450 LUX
Output Type SINK(NPN) SINK(NPN)

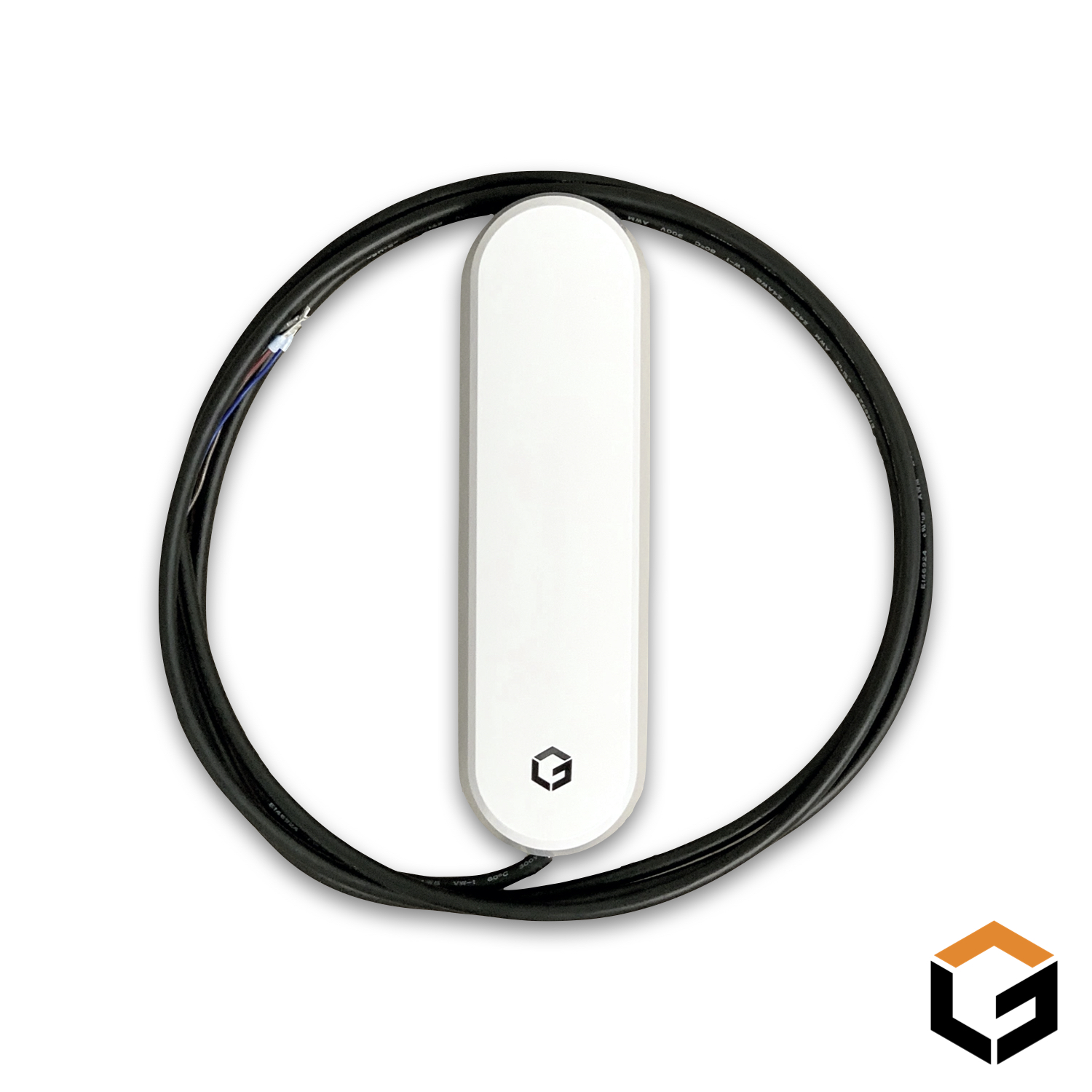

Net Weight 160g (Included 2m signal cable) 150g (Included 2m signal cable)
Warranty 1 year limited warranty 1 year limited warranty

Dimensions

The following figures show the dimensions of the GoodLinker® Tower Light Sensor series:

Unit(mm)

Resources

NAME TYPE VERSION RELEASE DATE
GoodLinker® Tower Light Sensor Quick Installation Guide Manual v1.0.1 Feb 28, 2020 Download
